Preliminary Datasheet

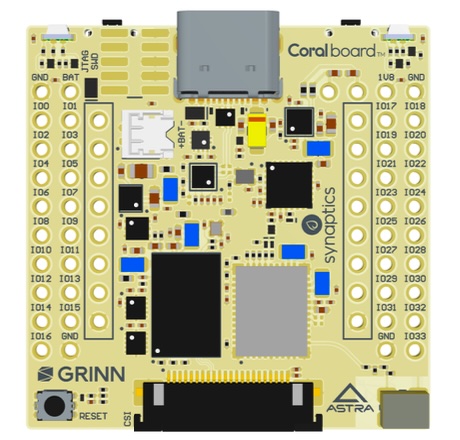

Coralboard SR (Coming Soon)

The synaptics Coralboard SR is an ultra-low-power and ultra-compact development platform engineered specifically for battery-operated Edge AI, multimedia, and wireless IoT applications. Built around the energy-efficient Synaptics SR200-series MCUs, it is optimized for long battery life and minimal power consumption in active, sleep, and standby modes.

Features

• Synaptics Astra® SR200-series ultra-low-power MCU with Coral NPU
  • Up to 128 MBytes of in-package Custom DRAM
• 128 Mbit QSPI NOR flash memory
• Synaptics SYN4381 Connectivity SoC w/ embedded antenna, supporting:
  • Wi-Fi 802.11a/b/g/n/ac/ax
  • Bluetooth 5.3
  • IEEE 802.15.4/Thread
• microSD card slot
• Single-cell Li- battery charger (up to 1.55 A) with fuel gauge
• Only 36 mm × 39 mm in size

IO

• USB-C for power and communication
• 2-lane MIPI CSI-2 camera connector (22-pin)
• 2-lane MIPI DSI display connector (22-pin)
• 34× GPIO via two 2×10-pin expansion headers
• mikroBUS and Qwiic expansion connectors
• Two MEMS digital microphones
• Class-D mono speaker amplifier
• 6-axis IMU
• Two RGB LED indicators, along with power, user, and reset buttons
• Dual serial console interface via USB-C for easy development
• JTAG connector 2x5 1.27 mm

More Coming Soon
