Framework API

The core functionality of the Synap framework is to execute a precompiled neural network. This is done via the Network class. The Network class has been designed to be simple to use in the most common cases while still being flexible enough for most advanced use-cases. The actual inference will take place on different HW units (NPU, GPU, CPU, or a combination of them) according to how the model has been compiled.

Basic Usage

Network Class

The Network class is extremely simple, as shown in the picture here below.

There are just two things that can be done with a network:

• Load a model, by providing the compiled model in .synap format.
• Execute an inference.

A network also has an array of input tensors where to put the data to be processed, and an array of output tensors which will contain the result(s) after each inference.

Figure 5 Network class

class synaptics::synap::Network

Load and execute a neural network on the NPU accelerator.

Summary

Function	Description
bool load_model(const std::string &model_file, const std::string &meta_file = "")	Load model from file.
bool load_model(const void *model_data, size_t model_size, const char *meta_data = nullptr)	Load model from memory.
bool predict()	Run inference.

Public Functions

bool load_model(const std::string &model_file, const std::string &meta_file = "")

• Load model.
• In case another model was previously loaded it is disposed before loading the one specified.
• Parameters:
  • model_file: Path to .synap model file. Can also be the path to a legacy .nb model file.
  • meta_file: For legacy .nb models, must be the path to the model’s metadata file (JSON-formatted). In all other cases, must be an empty string.
• Returns: true if successful.

bool load_model(const void *model_data, size_t model_size, const char *meta_data = nullptr)

• Load model.
• In case another model was previously loaded it is disposed before loading the one specified.
• Parameters:
  • model_data: Model data, as from e.g. fread() of model.synap. The caller retains ownership of the model data and can delete them at the end of this method.
  • model_size: Model size in bytes.
  • meta_data: For legacy .nb models, must be the model’s metadata (JSON-formatted). In all other cases, must be nullptr.
• Returns: true if successful.

bool predict()

• Run inference.
• Input data to be processed are read from input tensor(s). Inference results are generated in output tensor(s).
• Returns: true if successful, false if inference failed or network not correctly initialized.

Public Members

Tensors *inputs*

• Collection of input tensors that can be accessed by index and iterated.

Tensors *outputs*

• Collection of output tensors that can be accessed by index and iterated.

Using a Network

The prerequisite in order to execute a neural network is to create a Network object and load its model in .synap format. This file is generated when the network is converted using the Synap toolkit. This has to be done only once, after a network has been loaded it is ready to be used for inference:

1. Put the input data in the Network input tensor(s).
2. Call the network predict() method.
3. Get the results from the Network input tensor(s).

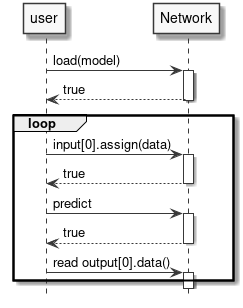

Figure 6 Running inference

Example

Network net;
net.load_model("model.synap");
vector[uint8_t](uint8_t) in_data = custom_read_input_data();
net.inputs[0].assign(in_data.data(), in_data.size());
net.predict();
custom_process_result(net.outputs[0].as_float(), net.outputs[0].item_count());

Please note that:

• All memory allocations and alignment for the weights and the input/output data are done automatically by the Network object.
• All memory is automatically deallocated when the Network object is destroyed.
• For simplicity, all error checking has been omitted. Methods typically return false if something goes wrong. No explicit error code is returned since the error can often be too complex to be explained with a simple enum code. Detailed information on errors can be found in the logs.
• The routines named custom_read_input_data are placeholders for user code in the example.
• In the code above, there is a data copy when assigning the in_data vector to the tensor. The data contained in the in_data vector can’t be used directly for inference because there is no guarantee that they are correcly aligned and padded as required by the HW. In most cases the cost of this extra copy is negligible, when this is not the case the copy can sometimes be avoided by writing directly inside the tensor data buffer, something like:

custom_generate_input_data(net.inputs[0].data(), net.inputs[0].size());
net.predict();

• The type of data in a tensor depends on how the network has been generated. Common data types are float16, float32, quantized uint8, and int16. The assign() and as_float() take care of all the required data conversions.

By using just the simple methods shown in this section it is possible to perform inference with the NPU hardware accelerator. This is almost all that one needs to know in order to use SyNAP in most applications. The following sections explain more details of what’s going on behind the scenes: this allows to take full advantage of the available HW for more demanding use-cases.

Advanced Topics

Tensors

We’ve seen in the previous section that all accesses to the network input and output data are done via tensor objects, so it’s worth looking in detail at what a Tensor object can do. Basically a tensor allows to:

• Get information and attributes about the contained data.
• Access data.
• Access the underlying Buffer used to contain data. More on this in the next section.

Figure 7 Tensor class

class synaptics::synap::Tensor

Synap data tensor.

It’s not possible to create tensors outside a Network, users can only access tensors created by the Network itself.

Summary

Function	Description
const std::string &name() const	Get the name of the tensor.
const Shape &shape() const	Get the shape of the tensor.
const Dimensions dimensions() const	Get the dimensions of the tensor.
Layout layout() const	Get the layout of the tensor.
std::string format() const	Get the format of the tensor.
DataType data_type() const	Get tensor data type.
Security security() const	Get tensor security attribute.
size_t size() const	Get the size in bytes of the tensor data.
size_t item_count() const	Get the number of items in the tensor.
bool is_scalar() const	Check if the tensor is a scalar.
bool assign(const uint8_t *data, size_t count)	Normalize and copy data to the tensor data buffer.
bool assign(const int16_t *data, size_t count)	Similar to the previous assign function but for int16_t data.
bool assign(const float *data, size_t count)	Similar to the previous assign function but for float data.
bool assign(const void *data, size_t size)	Copy raw data to the tensor data buffer.
bool assign(const Tensor &src)	Copy the content of a tensor to the tensor data buffer.
bool assign(int32_t value)	Write a value to the tensor data buffer.
template[typename T](typename T) T *data()	Get a pointer to the beginning of the data inside the tensor data buffer.
void *data()	Get a pointer to the raw data inside the tensor data buffer.
const float *as_float() const	Get a pointer to the tensor content converted to float.
Buffer *buffer()	Get a pointer to the tensor’s current data Buffer.
bool set_buffer(Buffer *buffer)	Set the tensor’s current data buffer.

Public Functions

const std::string &name() const

• Get the name of the tensor.
• Can be useful in case of networks with multiple inputs or outputs to identify a tensor with a string instead of a positional index.
• Returns: Tensor name.

const Shape &shape() const

• Get the shape of the tensor.
• Get the Shape of the Tensor, that is the number of elements in each dimension.
  The order of the dimensions is specified by the tensor layout.
• Returns: Tensor shape.

const Dimensions dimensions() const

• Get the Dimensions of the Tensor, that is the number of elements in each dimension.
  The returned values are independent of the tensor layout.
• Returns: Tensor dimensions (all 0s if the rank of the tensor is not 4).

Layout layout() const

• Get the layout of the Tensor, that is how data are organized in memory.
  SyNAP supports two layouts: NCHW and NHWC. The N dimension (number of samples) is present for compatibility with standard conventions but must always be one.
• Returns: Tensor layout.

std::string format() const

• Get the format of the Tensor, that is a description of what the data represents.
  This is a free-format string whose meaning is application-dependent, for example, "rgb", "bgr".
• Returns: Tensor format.

DataType data_type() const

• Get tensor data type. The integral types are used to represent quantized data. The details of the quantization parameters and quantization scheme are not directly available, an user can use quantized data by converting them to 32-bits float using the as_float() method below
• Returns: The type of each item in the tensor.

Security security() const

• Get tensor security attribute.
• Returns: Security attribute of the tensor (none if the model is not secure).

size_t size() const

• Returns: Size in bytes of the tensor data.

size_t item_count() const

• Get the number of items in the tensor. A tensor size() is always equal to item_count() multiplied by the size of the tensor data type.
• Returns: Number of data items in the tensor.

bool is_scalar() const

• Returns: true if this is a scalar tensor, that is, it contains a single element. (The shape of a scalar tensor has one dimension, equal to 1).

bool assign(const uint8_t *data, size_t count)

• Normalize and copy data to the tensor data buffer.
• The data is normalized and converted to the type and quantization scheme of the tensor.
  The data count must be equal to the item_count() of the tensor.
• Parameters:
  • data: Pointer to data to be copied.
  • count: Number of data items to be copied.
• Returns: true if successful.

bool assign(const int16_t *data, size_t count)

• Similar to the previous assign function but for int16_t data.
• Returns: true if successful.

bool assign(const float *data, size_t count)

• Similar to the previous assign function but for float data.
• Returns: true if successful.

bool assign(const void *data, size_t size)

• Copy raw data to the tensor data buffer. The data is considered as raw data, so no normalization or conversion is done. The data size must be equal to the size() of the tensor.
• Returns: true if successful.

bool assign(const Tensor &src)

• Copy the content of a tensor to the tensor data buffer.
• No normalization or conversion is done; the data type and size of the two tensors must match.
• Parameters:
  • src: Source tensor containing the data to be copied.
• Returns: true if successful, false if type or size mismatch.

bool assign(int32_t value)

• Writes a value to the tensor data buffer.
• Only works if the tensor is a scalar. The value is converted to the tensor data type: 8, 16, or 32 bits integer.
  Before writing in the data buffer, the value is also rescaled if needed as specified in the tensor format attributes.
• Parameters:
  • value: Value to be copied.
• Returns: true if successful.

template[typename T](typename T) T *data()

• Get a pointer to the beginning of the data inside the tensor data buffer if it can be accessed directly.
• This is the case only if T matches the data_type() of the tensor and no normalization/quantization is required (or normalization and quantization simplify-out each other). Sample usage: uint8_t* data8 = tensor.data[uint8_t](uint8_t)();
• Returns: Pointer to the data inside the data buffer or nullptr.

void *data()

• Get a pointer to the raw data inside the tensor data buffer, if any.
• The method returns a void pointer since the actual data type is what is returned by the data_type() method.
• Returns: Pointer to the raw data inside the data buffer, nullptr if none.

const float *as_float() const

• Get a pointer to the tensor content converted to float.
• The method always returns a float pointer. If the actual data type of the tensor is not float, the conversion is performed interally, so the user doesn’t have to care about how the data are internally represented. Please note that this is a pointer to floating point data inside the tensor itself: this means that the returned pointer must not be freed, memory will be released automatically when the tensor is destroyed.
• Returns: Pointer to float[item_count()] array representing tensor content converted to float (nullptr if tensor has no data).

Buffer *buffer()

• Get a pointer to the tensor’s current data Buffer, if any.
• This will be the default buffer of the tensor unless the user has assigned a different buffer using set_buffer().
• Returns: Current data buffer, or nullptr if none.

bool set_buffer(Buffer *buffer)

• Set the tensor’s current data buffer.
• The buffer size must be 0 or match the tensor size otherwise it will be rejected (empty buffers are automatically resized to the the tensor size). Normally the provided buffer should live at least as long as the tensor itself. If the buffer object is destroyed before the tensor, it will be automatically unset and the tensor will remain buffer-less.
• Parameters:
  • buffer: Buffer to be used for this tensor. The buffer size must match the tensor size (or be 0).
• Returns: true if successful.

Here below a list of all the data types supported in a tensor:

enum class synaptics::synap::DataType

Enumerators Values

Enumerator Values	Description
enumerator invalid	Invalid data type.
enumerator byte	Byte data type.
enumerator int8	8-bit signed integer.
enumerator uint8	8-bit unsigned integer.
enumerator int16	16-bit signed integer.
enumerator uint16	16-bit unsigned integer.
enumerator int32	32-bit signed integer.
enumerator uint32	32-bit unsigned integer.
enumerator float16	16-bit floating-point.
enumerator float32	32-bit floating-point.

Buffers

The memory used to store a tensor data has to satisfy the following requirements:

• Must be correctly aligned
• Must be correctly padded
• In some cases must be contiguous
• Must be accessible by the NPU HW accelerator and by the CPU or other HW components

Memory allocated with malloc() or new or std::vector doesn't satisfy these requirements so can't be used directly as input or output of a Network. For this reason Tensor objects use a special Buffer class to handle memory. Each tensor internally contains a default Buffer object to handle the memory used for the data.

The API provided by the Buffer is similar when possible to the one provided by std::vector. The main notable exeception is that a buffer content can't be indexed since a buffer is just a container for raw memory, without a data type. The data type is known by the tensor which is using the buffer. Buffer is also taking care of disposing the allocated memory when it is destroyed (RAII) to avoid all possible memory leakages. The actual memory allocation is done via an additional Allocator object. This allows to allocate memory with different attributes in different memory area. When a buffer object is created it will use the default allocator unless a different allocator is specified. The allocator can be specified directly in the constructor or later using the set_allocator() method.

Figure 8 Buffer class

In order for the buffer data to be shared by the CPU and NPU hardware some extra operations have to be done to ensure that the CPU caches and system memory are correcly aligned. All this is done automatically when the buffer content is used in the Network for inference. There are cases when the CPU is not going to read/write the buffer data directly, for example when the data is generated by another HW component (eg. video decoder). In these cases it’s possible to have some performance improvements by disabling CPU access to the buffer using the method provided.

note

It is possible to create a buffer that refers to an existing memory area instead of using an allocator. This memory must be registered with the TrustZone kernel and correctly aligned and padded. The Buffer object will not free the memory when destroyed, as the memory is owned by the SW module that allocated it.

class synaptics::synap::Buffer

Synap data buffer.

Summary

Function	Description
Buffer(Allocator *allocator = nullptr)	Create an empty data buffer.
Buffer(size_t size, Allocator *allocator = nullptr)	Create and allocate a data buffer.
Buffer(uint32_t mem_id, size_t offset, size_t size)	Refer to an existing memory area.
Buffer(uint32_t handle, size_t offset, size_t size, bool is_mem_id)	Refer to an existing memory area.
Buffer(const Buffer &rhs, size_t offset, size_t size)	Refer to a part of the memory area of an existing buffer.
Buffer(Buffer &&rhs) noexcept	Move constructor.
Buffer &operator=(Buffer &&rhs) noexcept	Move assignment.
bool resize(size_t size)	Resize buffer.
bool assign(const void *data, size_t size)	Copy data in buffer.
size_t size() const	Get actual data size.
const void *data() const	Get actual data.
bool allow_cpu_access(bool allow)	Enable/disable CPU access to buffer data.
bool set_allocator(Allocator *allocator)	Change the allocator.

Public Functions

Buffer(Allocator *allocator = nullptr)

• Create an empty data buffer.
• Parameters:
  • allocator: Allocator to be used (default is malloc-based).

Buffer(size_t size, Allocator *allocator = nullptr)

• Create and allocate a data buffer.
• Parameters:
  • size: Buffer size.
  • allocator: Allocator to be used (default is malloc-based).

Buffer(uint32_t mem_id, size_t offset, size_t size)

• Create a data buffer to refer to an existing memory area.
• The user must ensure that the provided memory is correctly aligned and padded. The specified memory area will not be deallocated when the buffer is destroyed. It is the responsibility of the caller to release mem_id after the Buffer has been destroyed.
• Parameters:
  • mem_id: ID of an existing memory area registered with the TZ kernel.
  • offset: Offset of the actual data inside the memory area.
  • size: Size of the actual data.

Buffer(uint32_t handle, size_t offset, size_t size, bool is_mem_id)

• Create a data buffer to refer to an existing memory area.
• The user must ensure that the provided memory is correctly aligned and padded. The specified memory area will not be deallocated when the buffer is destroyed. It is the responsibility of the caller to release mem_id after the Buffer has been destroyed.
• Parameters:
  • handle: FD of an existing dmabuf or mem_id registered with the TZ kernel.
  • offset: Offset of the actual data inside the memory area.
  • size: Size of the actual data.
  • is_mem_id: true if the first argument is mem_id, false if it is a FD.

Buffer(const Buffer &rhs, size_t offset, size_t size)

• Create a data buffer that refers to a part of the memory area of an existing buffer.**
• The memory of the provided buffer must already be allocated. To avoid referring to released memory, the existing buffer memory must not be deallocated before this buffer is destroyed.
• Parameters:
  • rhs: An existing Buffer.
  • offset: Offset of the desired data inside the Buffer memory area.
  • size: Size of the desired data.

Buffer(Buffer &&rhs) noexcept

• Move constructor. Only possible for buffers not yet in use by a Network.

Buffer &operator=(Buffer &&rhs) noexcept

• Move assignment. Only possible for buffers not yet in use by a Network.

bool resize(size_t size)

• Resize buffer. Only possible if an allocator was provided. Any previous content is lost.
• Parameters:
  • size: New buffer size.
• Returns: true if successful.

bool assign(const void *data, size_t size)

• Copy data in buffer. Always successful if the input data size is the same as the current buffer size; otherwise, the buffer is resized if possible.
• Parameters:
  • data: Pointer to data to be copied.
  • size: Size of data to be copied.
• Returns: true if successful.

size_t size() const

• Get actual data size.

const void *data() const

• Get actual data.

bool allow_cpu_access(bool allow)

• Enable/disable the possibility for the CPU to read/write the buffer data.
• By default CPU access to data is enabled. CPU access can be disabled in case the CPU doesn’t need to read or write the buffer data and can provide some performance improvements when the data is only generated/used by another HW components.

note

Reading or writing buffer data while CPU access is disabled might cause loss or corruption of the data in the buffer.

• Parameters:
  • allow: false to indicate the CPU will not access buffer data.
• Returns: Current setting.
• Note: Reading or writing buffer data while CPU access is disabled might cause loss or corruption of the data in the buffer.

bool set_allocator(Allocator *allocator)

• Change the allocator. Can only be done if the buffer is empty.
• Parameters:
  • allocator: Allocator.
• Returns: true if successful.

Allocators

Two allocators are provided for buffer objects:

• Standard Allocator: This is the default allocator used by buffers created without explicitly specifying an allocator. The memory is paged (non-contiguous).
• CMA Allocator: Allocates contiguous memory. Contiguous memory is required for some HW components and can provide some small performance improvement if the input/output buffers are very large since less overhead is required to handle memory pages. Should be used with great care since the contiguous memory available in the system is quite limited.

Allocator *std_allocator()

• Returns a pointer to the system standard allocator.

Allocator *cma_allocator()

• Returns a pointer to the system contiguous allocator.

important

The calls above return pointers to global objects, so they must NOT be deleted after use.

Advanced Examples

Accessing Tensor Data

Data in a Tensor is normally written using the Tensor::assign(const T* data, size_t count) method. This method will take care of any required data normalization and data type conversion from the type T to the internal representation used by the network.

Similarly, the output data is normally read using the Tensor::as_float() method, which provides a pointer to the tensor data converted to floating point values from whatever internal representation is used.

These conversions, even if quite optimized, present a runtime cost that is proportional to the size of the data. For input data, this cost could be avoided by generating them directly in the Tensor data buffer, but this is only possible when the tensor data type corresponds to that of the data available in input and no additional normalization/quantization is required. Tensor provides a type-safe data[T](T) () access method that will return a pointer to the data in the tensor only if the above conditions are satisfied, for example:

uint8_t* data_ptr = net.inputs[0].data[uint8_t](uint8_t)();
if (data_ptr) {
   custom_generate_data(data_ptr, net.inputs[0].item_count());
}

If the data in the tensor is not uint8_t or normalization/[de]quantization is required, the returned value will be nullptr. In this case, the direct write or read is not possible and assign() or as_float() is required.

It’s always possible to access the data directly by using the raw data() access method which bypasses all checks:

void* in_data_ptr = net.inputs[0].data();
void* out_data_ptr = net.outputs[0].data();

In the same way, it’s also possible to assign raw data (without any conversion) by using a void* data pointer:

const void* in_raw_data_ptr = ....;
net.inputs[0].assign(in_raw_data_ptr, size);

In these cases, it is the responsibility of the user to know how the data is represented and how to handle them.

Setting Buffers

If the properties of the default tensor buffer are not suitable, the user can explicitly create a new buffer and use it instead of the default one. For example, suppose we want to use a buffer with contiguous memory:

Network net;
net.load_model("model.synap");

// Replace the default buffer with one using contiguous memory
Buffer cma_buffer(net.inputs[0].size(), cma_allocator());
net.inputs[0].set_buffer(&cma_buffer);

// Do inference as usual
custom_generate_input_data(net.inputs[0].data(), net.inputs[0].size());
net.predict();

Settings Default Buffer Properties

A simpler alternative to replacing the buffer used in a tensor as seen in the previous section is to directly change the properties of the default tensor buffer. This can only be done at the beginning, before the tensor data is accessed:

Network net;
net.load_model("model.synap");

// Use contiguous allocator for default buffer in input[0]
net.inputs[0].buffer()->set_allocator(cma_allocator());

// Do inference as usual
custom_generate_input_data(net.inputs[0].data(), net.inputs[0].size());
net.predict();

Buffer Sharing

The same buffer can be shared among multiple networks if they need to process the same input data. This avoids the need for redundant data copies:

Network net1;
net1.load_model("nbg1.synap");
Network net2;
net2.load_model("nbg2.synap");

// Use a common input buffer for the two networks (assume same input size)
Buffer in_buffer;
net1.inputs[0].set_buffer(&in_buffer);
net2.inputs[0].set_buffer(&in_buffer);

// Do inference as usual
custom_generate_input_data(in_buffer.data(), in_buffer.size());
net1.predict();
net2.predict();

Another interesting case of buffer sharing is when the output of a network must be processed directly by another network. For example, the first network can do some preprocessing, and the second one can perform the actual inference. In this case, setting the output buffer of the first network as the input buffer of the second network allows completely avoiding data copying (the two tensors must have the same size, of course). Furthermore, since the CPU has no need to access this intermediate data, it is convenient to disable its access to this buffer, avoiding the unnecessary overhead of cache flushing and providing an additional improvement in performance.

Network net1;
net1.load_model("nbg1.synap");
Network net2;
net2.load_model("nbg2.synap");

// Use net1 output as net2 input. Disable CPU access for better performance.
net1.outputs[0].buffer()->allow_cpu_access(false);
net2.inputs[0].set_buffer(net1.outputs[0].buffer());

// Do inference as usual
custom_generate_input_data(net1.inputs[0].data(), net1.inputs[0].size());
net1.predict();
net2.predict();

One last case is when the output of the first network is smaller than the input of the second network, and we still want to avoid copy. Imagine, for example, that the output of net1 is an image 640x360 that we want to generate inside the input of net2, which expects an image 640x480. In this case, the buffer-sharing technique shown above can’t work due to the mismatch in size of the two tensors. What we need instead is to share part of the memory used by the two Buffers.

Network net2;  // Important: this has to be declared first, so it is destroyed after net1
net2.load_model("nbg2.synap");
Network net1;
net1.load_model("nbg1.synap");

// Initialize the entire destination tensor now that we still have CPU access to it
memset(net2.inputs[0].data(), 0, net2.inputs[0].size());

// Replace net1 output buffer with a new one using (part of) the memory of net2 input buffer
*net1.outputs[0].buffer() = Buffer(*net2.inputs[0].buffer(), 0, net2.outputs[0].size());

// Disable CPU access for better performance
net1.outputs[0].buffer()->allow_cpu_access(false);
net2.inputs[0].buffer()->allow_cpu_access(false);

// Do inference as usual
custom_generate_input_data(net1.inputs[0].data(), net1.inputs[0].size());
net1.predict();
net2.predict();

note

Since net1 input tensor now uses the memory allocated by net2, it is important that net1 is destroyed before net2; otherwise, it will be left pointing to unallocated memory. This limitation will be fixed in the next release.

Recycling Buffers

It is possible for the user to explicitly set at any time which buffer to use for each tensor in a network. The cost of this operation is very low compared to the creation of a new buffer, so it is possible to change the buffer associated with a tensor at each inference if desired.

Despite this, the cost of creating a buffer and setting it to a tensor the first time is quite high since it involves multiple memory allocations and validations. It is possible but deprecated to create a new Buffer at each inference; better to create the required buffers in advance and then just use set_buffer() to choose which one to use.

As an example, consider a case where we want to do inference on the current data while at the same time preparing the next data. The following code shows how this can be done:

Network net;
net.load_model("model.synap");

// Create two input buffers
const size_t input_size = net.inputs[0].size();
vector[Buffer](Buffer) buffers { Buffer(input_size), Buffer(input_size) };

int current = 0;
custom_start_generating_input_data(&buffers[current]);
while (true) {
    custom_wait_for_input_data();

    // Do inference on current data while filling the other buffer
    net.inputs[0].set_buffer(&buffers[current]);
    current = !current;
    custom_start_generating_input_data(&buffers[current]);
    net.predict();
    custom_process_result(net.outputs[0]);
}

Using BufferCache

There are situations where the data to be processed comes from other components that provide each time a data block taken from a fixed pool of blocks. Each block can be uniquely identified by an ID or by an address. This is the case, for example, of a video pipeline providing frames.

Processing in this case should proceed as follows:

1. Get the next block to be processed.
2. If this is the first time we see this block, create a new Buffer for it and add it to a collection.
3. Get the Buffer corresponding to this block from the collection.
4. Set it as the current buffer for the input tensor.
5. Do inference and process the result.

The collection is needed to avoid the expensive operation of creating a new Buffer each time. This is not complicated to code, but steps 2 and 3 are always the same. The BufferCache template takes care of all this. The template parameter allows specifying the type to be used to identify the received block; this can be, for example, a BlockID or directly the address of the memory area.

note

In this case, the buffer memory is not allocated by the Buffer object. The user is responsible for ensuring that all data is properly padded and aligned. Furthermore, the buffer cache does not take ownership of the data block; it is the responsibility of the user to deallocate them in due time after the BufferCache has been deleted.

Copying and Moving

Network, Tensor, and Buffer objects internally access hardware resources, so they can’t be copied. For example:

Network net1;
net1.load_model("model.synap");
Network net2;
net2 = net1;  // ERROR, copying networks is not allowed

However, Network and Buffer objects can be moved since this has no overhead and can be convenient when the point of creation is not the point of use. Example:

Network my_create_network(string nb_name, string meta_name) {
    Network net;
    net.load(nb_name, meta_name);
    return net;
}

void main() {
    Network network = my_create_network("model.synap");
    ...
}

The same functionality is not available for Tensor objects; they can exist only inside their own Network.

NPU Locking

An application can decide to reserve the NPU for its exclusive usage. This can be useful in case of realtime applications that have strict requirements in terms of latency, for example video or audio stream processing.

Locking the NPU can be done at two levels:

1. Reserve NPU access to the current process using Npu::lock().
2. Reserve NPU for offline use only (that is, disable NPU access from NNAPI).

NPU Locking

The NPU locking is done by process, this means that once the Npu::lock() API is called no other process will be able to run inference on the NPU. Other processes will still be able to load networks, but if they try to do offline or online NNAPI inference or to lock() the NPU again, they will fail.

The process which has locked the NPU is the only one which has the rights to unlock it. If a process with a different PID tries to unlock() the NPU, the operation will be ignored and have no effect.

note

There is currently no way for a process to test if the NPU has been locked by some other process. The only possibility is to try to lock() the NPU. If this operation fails, it means that the NPU is already locked by another process or unavailable due to some failure.

note

If the process owning the NPU lock terminates or is terminated for any reason, the lock is automatically released.

NNAPI Locking

A process can reserve the NPU for offline use only so that nobody will be able to run online inference on the NPU via NNAPI. Other processes will still be able to run offline inference on the NPU. SyNAP has no dedicated API for this, NNAPI can be disabled by setting the property vendor.NNAPI_SYNAP_DISABLE to 1 using the standard Android API __system_property_set() or android::base::SetProperty(). Sample code in setprop.cpp file in the Android source code.

See also: Disabling NPU Usage from NNAPI

note

It will still be possible to perform online inference on the NPU using the timvx tflite delegate.

Description

The Npu class controls the locking and unlocking of the NPU. Normally only one object of this class needs to be created when the application starts and destroyed when the application is going to terminate.

Figure 9 NPU class

class synaptics::synap::Npu

Reserve NPU usage.

Summary

Function	Description
bool available() const	Check if the NPU is successfully initialized.
bool lock()	Lock exclusive right to perform inference for the current process.
bool unlock()	Release exclusive right to perform inference.
bool is_locked() const	Check if the NPU lock is currently owned.

Public Functions

bool available() const

• Check if the NPU is successfully initialized.
• Returns: true if the NPU is successfully initialized.

bool lock()

• Lock exclusive right to perform inference for the current process.
• All other processes attempting to execute inference will fail, including those using NNAPI.
  The lock will stay active until unlock() is called or the Npu object is deleted.
• Returns:
  • true if NPU is successfully locked. Calling this method on an Npu object that is already locked has no effect; just returns true.
  • false if NPU is unavailable or locked by another process.

bool unlock()

• Release exclusive right to perform inference.
• Returns:
  • true if successful. Calling this method on an Npu object that is not locked has no effect; just returns true.

bool is_locked() const

• Check if the NPU lock is currently owned.
• Note: The only way to test if the NPU is locked by someone else is to try to lock() it.
• Returns: true if we currently own the NPU lock.

struct Private

• Npu private implementation.

note

The Npu class uses the RAII technique, this means that when an object of this class is destroyed and it was locking the NPU, the NPU is automatically unlocked. This helps ensure that when a program terminates the NPU is in all cases unlocked.

Sample Usage

The following diagrams show some example use of the NPU locking API.

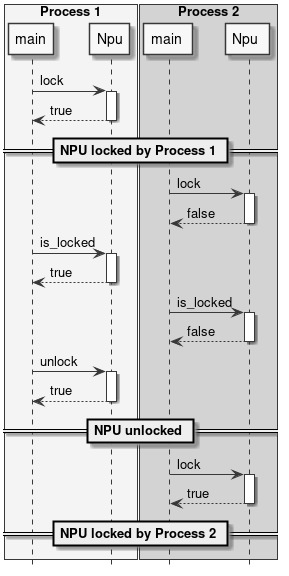

Figure 10 Locking the NPU

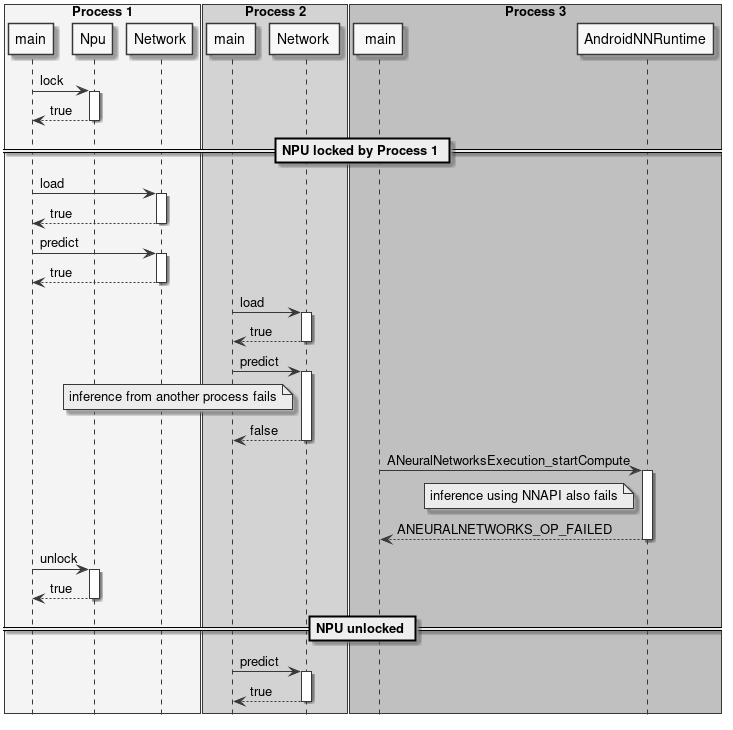

Figure 11 Locking and inference

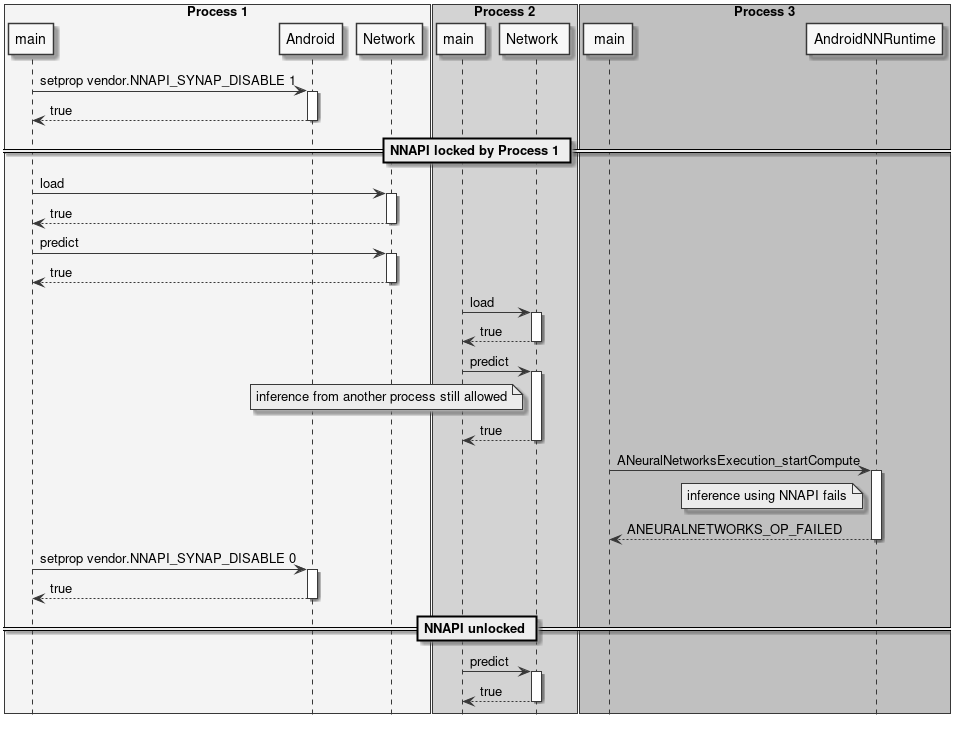

Figure 12 Locking NNAPI

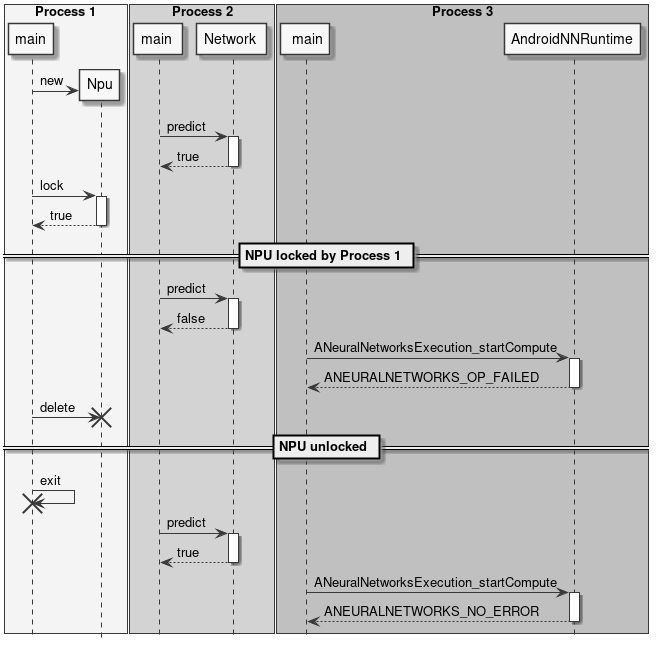

Figure 13 Automatic lock release

Preprocessing and Postprocessing

When using neural networks, the input and output data are rarely used in their raw format. Most often, data conversion has to be performed on the input data to make them match the format expected by the network. This step is called preprocessing.

Examples of preprocessing in the case of an image are:

• Scale and/or crop the input image to the size expected by the network.
• Convert planar to interleaved or vice-versa.
• Convert RGB to BGR or vice-versa.
• Apply mean and scale normalization.

These operations can be performed using the NPU at inference time by enabling preprocessing when the model is converted using the SyNAP Toolkit, or they can be performed in software when the data is assigned to the Network.

Similarly, the inference results contained in the network output tensor(s) normally require further processing to make the result usable. This step is called postprocessing. In some cases, postprocessing can be a non-trivial step in both complexity and computation time.

Examples of postprocessing are:

• Convert quantized data to floating point representation.
• Analyze the network output to extract the most significant elements.
• Combine the data from multiple output tensors to obtain a meaningful result.

The classes in this section are not part of the SyNAP API; they are intended mainly as utility classes that can help in writing SyNAP applications by combining the three usual steps of preprocess-inference-postprocess just explained.

Full source code is provided, so they can be used as a reference implementation for the user to extend.

InputData Class

The main role of the InputData class is to wrap the actual input data and complement it with additional information to specify what the data represents and how it is organized. The current implementation is mainly focused on image data.

InputData functionality includes:

• Reading raw files (binary).
• Reading and parsing images (jpeg or png) from file or memory.
• Getting image attributes, e.g., dimensions and layout.

The input filename is specified directly in the constructor and can’t be changed. As an alternative to a filename, it is also possible to specify a memory address in case the content is already available in memory.

note

No data conversion is performed. Even for jpeg or png images, the data is kept in its original form.

Figure 14 InputData class

Example:

Network net;
net.load_model("model.synap");
InputData image("sample_rgb_image.dat");
net.inputs[0].assign(image.data(), image.size());
net.predict();
custom_process_result(net.outputs[0]);

Preprocessor Class

This class takes as input an InputData object and assigns its content to the input Tensor(s) of a network by performing all the necessary conversions. The conversion(s) required are determined automatically by reading the attributes of the tensor itself.

Supported conversions include:

• Image decoding (jpeg, png, or nv21 to rgb)
• Layout conversion: nchw to nhwc or vice-versa
• Format conversion: rgb to bgr or grayscale
• Image cropping (if preprocessing with cropping enabled in the compiled model)
• Image rescaling to fit the tensor dimensions

The conversion (if needed) is performed when an InputData object is assigned to a Tensor.

Cropping is only performed if enabled in the compiled model and the multi-tensor assign API is used: Preprocessor::assign(Tensors& ts, const InputData& data).

Rescaling by default preserves the aspect ratio of the input image. If the destination tensor is taller than the rescaled input image, gray bands are added at the top and bottom. If the destination tensor is wider than the rescaled input image, gray bands are added at the left and right. It is possible to configure the gray level of the fill using the fill_color=N option in the format string of the input tensor, where N is an integer between 0 (black) and 255 (white).

The preservation of the aspect ratio can be disabled by specifying the keep_proportions=0 option in the format string of the input tensor. In this case, the input image is simply resized to match the size of the tensor.

note

The Preprocessor class performs preprocessing using the CPU. f the conversion to be done is known in advance it may be convenient to perform it using the NPU by adding a preprocessing layer when the network is converted, see Preprocessing.

---

ImagePostprocessor Class

ImagePostprocessor functionality includes:

• Reading the content of a set of Tensors.
• Converting the raw content of the Tensors to a standard representation (currently only nv21 is supported). The format of the raw content is determined automatically by reading the attributes of the tensors themselves. For example, in some super-resolution networks, the different components of the output image (y, uv) are provided in separate outputs. The converted data is made available in a standard vector.

Figure 15 ImagePostprocessor class

Example:

Preprocessor preprocessor;
Network net;
ImagePostprocessor postprocessor;

net.load_model("model.synap");
InputData image("sample_image.jpg");
preprocessor.assign(net.inputs[0], image);
net.predict();
// Convert to nv21
ImagePostprocessor::Result out_image = postprocessor.process(net.outputs);
binary_file_write("out_file.nv21", out_image.data.data(), out_image.data.size());

Classifier Class

The Classifier class is a postprocessor for the common use case of image classification networks.

There are just two things that can be done with a classifier:

• Initialize it.
• Process network outputs: this will return a list of possible classifications sorted in order of decreasing confidence, each containing the following information:
  • class_index
  • confidence

Figure 16 Classifier class

class synaptics::synap::Classifier

Classification post-processor for Network output tensors.

Determine the top-N classifications of an image.

Summary

Function	Description
inline Classifier(size_t top_count = 1)	Constructor to initialize the classifier.
Result process(const Tensors &tensors)	Perform classification on network output tensors.

Public Functions

inline Classifier(size_t top_count = 1)

• Constructor.
• Parameters: -top_count: Number of most probable classifications to return.

Result process(const Tensors &tensors)

• Perform classification on network output tensors.**
• Parameters:
  • tensors: Output tensors of the network tensors[0] is expected to contain a list of confidences, one for each image class.
• Returns: Classification results.

struct Result

• Classification result.

Public Members of Result

bool success = {}

• True if classification successful, false if failed.

std::vector[Item](Item) items

• List of possible classifications for the input, sorted in descending confidence order, that is items[0] is the classification with the highest confidence.
• Empty if classification failed.

struct Item

Classification item.

Public Members of Item

int32_t class_index

• Index of the class.

float confidence

• Confidence of the classification, normally in the range [0, 1].

Example:

Preprocessor preprocessor
Network net;
Classifier classifier(5);
net.load_model("model.synap");
InputData image("sample_image.jpg");
preprocessor.assign(net.inputs[0], image);
net.predict();
Classifier::Result top5 = classifier.process(net.outputs);

The standard content of the output tensor of a classification network is a list of probabilities, one for each class on which the model has been trained (possibly including an initial element to indicate a "background" or "unrecognized" class). In some cases, the final SoftMax layer of the model is cut away to improve inference time: in this case, the output values can’t be interpreted as probabilities anymore but since SoftMax is monotonic this doesn’t change the result of the classification. The postprocessing can be parametrized using the format field of the corresponding output in the Conversion metafile:

Format Type	Out#	Shape	Description
confidence_array	0	NxC	List of probabilities, one per class

Attribute	Default	Description
class_index_base	0	Class index corresponding to the first element of the output vector

Where:

• N: Number of samples, must be 1.
• C: Number of recognized classes.

Detector Class

The Detector class is a postprocessor for the common use case of object detection networks. Here object is a generic term that can refer to actual objects, people, or anything used to train the network.

There are just two things that can be done with a detector:

• Initialize it.
• Run a detection: this will return a list of detection items, each containing the following information:
  • class_index
  • confidence
  • bounding box
  • landmarks (optional)

Figure 17 Detector class

class synaptics::synap::Detector

Object-detector.

The output format of object-detection networks is not always the same but depends on the network architecture used. The format type must be specified in the format field of the output tensor in the network metafile when the network is compiled.
The following formats are currently supported: retinanet_boxes, tflite_detection_boxes, yolov5.

Summary

Function	Description
Detector(float score_threshold = 0.5, int n_max = 0, bool nms = true, float iou_threshold = .5, bool iou_with_min = false)	Constructor.
bool init(const Tensors &tensors)	Initialize detector.
Result process(const Tensors &tensors, const Rect &input_rect)	Perform detection on network output tensors.

---

Public Functions

Detector(float score_threshold = 0.5, int n_max = 0, bool nms = true, float iou_threshold = .5, bool iou_with_min = false)

• Constructor.
• Parameters:
  • score_threshold: Detections below this score are discarded.
  • n_max: Maximum number of detections (0: all).
  • nms: If true, apply non-max-suppression to remove duplicate detections.
  • iou_threshold: Intersection-over-union threshold (used if nms is true).
  • iou_with_min: Use min area instead of union to compute intersection-over-union.

bool init(const Tensors &tensors)

• Initialize detector. If not called, the detector is automatically initialized the first time process() is called.
• Parameters:
  • tensors: Output tensors of the network (after the network has been loaded).
• Returns: true if successful.

Result process(const Tensors &tensors, const Rect &input_rect)

• Perform detection on network output tensors.
• Parameters:
  • tensors: Output tensors of the network.
  • input_rect: Coordinates of the (sub)image provided in input (to compute bounding boxes).
• Returns: Detection results.

class Impl

Subclassed by DetectorBoxesScores, DetectorTfliteODPostprocessOut, DetectorYoloBase, DetectorYolov5Pyramid

struct Result

Object-detector result.

Public Members of struct Result

bool success = {}

• True if detection successful, false if detection failed.

std::vector[Item](Item) items

• One entry for each detection.
• Empty if nothing detected or detection failed.

struct Item

Detection item.

Public Members of struct Item

int32_t class_index

• Index of the object class.

float confidence

• Confidence of the detection, in the range [0, 1].

Rect bounding_box

• Top,left corner plus horizontal and vertical size (in pixels).

std::vector[Landmark](Landmark) landmarks

• One entry for each landmark.
• Empty if no landmark available.

Example:

Preprocessor preprocessor
Network net;
Detector detector;
net.load_model("model.synap");
InputData image("sample_image.jpg");
Rect image_rect;
preprocessor.assign(net.inputs[0], image, &image_rect);
net.predict();
Detector::Result objects = detector.process(net.outputs, image_rect);

The rectangle argument passed to the process() method is needed so that it can compute bounding boxes and landmarks in coordinates relative to the original image, even if the image has been resized and/or cropped during the assignment to the network input tensor.

Postprocessing consists of the following steps:

• For each possible position in the input grid, compute the score of the highest class there.
• If this score is too low, nothing is detected at that position.
• If above the detection threshold, compute the actual bounding box of the object by combining information about the anchor's location, the regressed deltas from the network, and the actual size of the input image.
• Once all the detections have been computed, filter them using the Non-Min-Suppression algorithm to discard spurious overlapping detections and keep only the one with the highest score at each position. The NMS filter applies only for bounding boxes that have an overlap above a minimum threshold. The overlap itself is computed using the IntersectionOverUnion formula (Intersection Over Union). In order to provide more filtering for boxes of different sizes, the "intersection" area is sometimes replaced by the "minimum" area in the computation. SyNAP Detector implements both formula.

The content of the output tensor(s) from an object detection network is not standardized. Several formats exist for the major families of detection networks, with variants inside each family. The information contained is always the same; what changes is the way they are organized. The Detector class currently supports the following output formats:

• retinanet_boxes
• tflite_detection_input
• tflite_detection
• yolov5
• yolov8

The desired label from the above list must be placed in the "format" field of the first output tensor of the network in the conversion metafile so the Detector knows how to interpret the output.

• retinanet_boxes is the output format used by Synaptics sample detection networks (e.g., mobilenet224_full80 for COCO detection and mobilenet224_full1 for people detection).

• tflite_detection_input is the format of the input tensors of the TFLite_Detection_PostProcess layer, used for example in the ssd_mobilenet_v1_1_default_1.tflite object-detection model.

This format is used when the TFLite_Detection_PostProcess layer is removed from the network at conversion time and the corresponding postprocessing algorithm is performed in software.

In both cases above the model has two output tensors: the first one is a regression tensor, and contains the bounding box deltas for the highest-score detected object in each position of the input grid. The second one is the classification tensor and for each class contains the score of that class, that is the confidence that this class is contained in the corresponding position of the input grid.

• tflite_detection is the format of the output tensors of the TFLite_Detection_PostProcess layer, used for example in the ssd_mobilenet_v1_1_default_1.tflite object-detection model.

• yolov5 is the output format used by models derived from the well-known yolov5 architecture. In this case the model has a single output 3D tensor organized as a list of detections, where each detection contains the following fields:

  • bounding box deltas (x, y, w, h)
  • overall confidence for this detection
  • landmarks deltas (x, y) if supported by the model
  • confidence vector, one entry per class

• yolov8 is the output format used by models derived from the yolov8 arcitecture, the most recent update to the yolo family. The organization of the output tensor is very similar to that for yolov5 here above, the only difference is that the overall confidence field is missing.

In some cases the final layers in the model can be executed more efficiently in the CPU, so they are cut away when the model is generated or compiled with the SyNAP Toolkit. In this case the network will have one output tensor for each item of the image pyramid (normally 3) and each output will be a 4D or 5D tensor, whose layout depends on where exacly the model has been cut.

SyNAP Detector is able to automatically deduce the layout used, it just requires an indication if the information in the tensor are transposed.

Format Type	Out#	Shape	Description	Notes
retinanet_boxes	0	Nx4	bounding box deltas
	1	NxC	Per-class probability
tflite_detection_input	0	Nx4	bounding box deltas
tflite_detection_boxes	1	NxC	Per-class probability
tflite_detection	0	NxMx4	Bounding boxes
	1	NxM	Index of detected class
	2	NxM	Score of detected class
	3	1	Actual number of detections
yolov5	0..P-1	NxTxD	Processing done in the model
		NxHxWxAxD	One 5D tensor per pyramid element
		NxHxWx(A*D)	One 4D tensor per pyramid element
		NxAxHxWxD	One 5D tensor per pyramid element
		NxAxDxHxW	One 5D tensor per pyramid element	Requires transposed=1
		Nx(A*D)xHxW	One 4D tensor per pyramid element	Requires transposed=1
yolov8	0	NxTxD	Processing done in the model	Overall confidence missing

Where:

• N: number of samples, must be 1
• C: number of classes detected
• T: total number of detections
• M: maximum number of detections
• D: detection size (includes: bounding box deltas xywh, confidence, landmarks, per-class confidences)
• A: number of anchors
• H: height of the image in the pyramid
• W: width of the image in the pyramid
• P: number of images in the pyramid

Attributes for retinanet_boxes and tflite_detection_input Formats

Attribute	Default	Description
class_index_base	0	Class index corresponding to the first element of the output vector
transposed	0	Must be 1 if the output tensor uses the transposed format
anchors		Anchor points
x_scale	10	See x_scale parameter in the TFLite_Detection_PostProcess layer
y_scale	10	See y_scale parameter in the TFLite_Detection_PostProcess layer
h_scale	5	See h_scale parameter in the TFLite_Detection_PostProcess layer
w_scale	5	See w_scale parameter in the TFLite_Detection_PostProcess layer

In this case, the anchor points can be defined using the built-in variable ${ANCHORS}:

anchors=${ANCHORS}

This variable is replaced at conversion time with the content of the anchor tensor from the TFLite_Detection_PostProcess layer (if present in the model).

Attributes for tflite_detection Format

Attribute	Default	Description
class_index_base	0	Class index corresponding to the first element of the output vector
h_scale	0	Vertical scale of the detected boxes (normally the H of the input tensor)
w_scale	0	Horizontal scale of the detected boxes (normally the W of the input tensor)

---

Attributes for yolov5 and yolov8 Formats

Attribute	Default	Description
class_index_base	0	Class index corresponding to the first element of the output vector
transposed	0	Must be 1 if the output tensor uses the transposed format
landmarks	0	Number of landmark points
anchors	0	Anchor points. Not needed if processing done in the model
h_scale	0	Vertical scale of the detected boxes (normally the H of the input tensor when processing is done in the model)
w_scale	0	Horizontal scale of the detected boxes (normally the W of the input tensor when processing is done in the model)
bb_normalized	0	Must be 1 if the bounding box deltas are normalized (only for yolov8) Indicates that bounding boxes are normalized to the range [0, 1] while landmarks are in the range h_scale, w_scale

For yolov5 format, the anchors attribute must contain one entry for each pyramid element from P0, where each entry is a list of the x,y anchor deltas. For example for yolov5s-face, the anchors are defined in yolov5s.yaml:

- [4,5,  8,10,  13,16]  # P3/8
- [23,29,  43,55,  73,105]  # P4/16
- [146,217,  231,300,  335,433]  # P5/32

The corresponding outputs in the metafile can be defined as follows:

outputs:
  - format: yolov5 landmarks=5 anchors=[[],[],[],[4,5,8,10,13,16],[23,29,43,55,73,105],[146,217,231,300,335,433]]
    dequantize: true
  - dequantize: true
  - dequantize: true

Building Sample Code

The source code of the sample applications (e.g. synap_cli, synap_cli_ic, etc.) is included in the SyNAP release, together with that of the SyNAP libraries. Users based on the ASTRA distribution can build SyNAP using the provided Yocto recipe.

For other users, building SyNAP code requires the following components installed:

1. VSSDK tree
2. cmake

Build steps

cd synap/src
mkdir build
cd build
cmake -DVSSDK_DIR=/path/to/vssdk-directory -DCMAKE_INSTALL_PREFIX=install ..
make install

The above steps will create the binaries for the sample applications in synap/src/build/install/bin. The binaries can then be pushed to the board using adb:

cd synap/src/build/install/bin
adb push synap_cli_ic /vendor/bin

Users are free to change the source code provided to adapt it to their specific requirements.
